There are three menus required to set up a RAID for CnW Recovery.  The first is drive selection, and the second is the configuration, and third for JBODs

To create a new configuration, enter the required name in the New Configuration box, then select 'Create'.  At this point select the number of drives, and then enter details for each drive.

To start configuring a RAID it is necessary to select the number of drives, and then define each drive.  A drive can either be a

• Physical drive
• File image
• Defined as missing - only relevant for RAID-5.

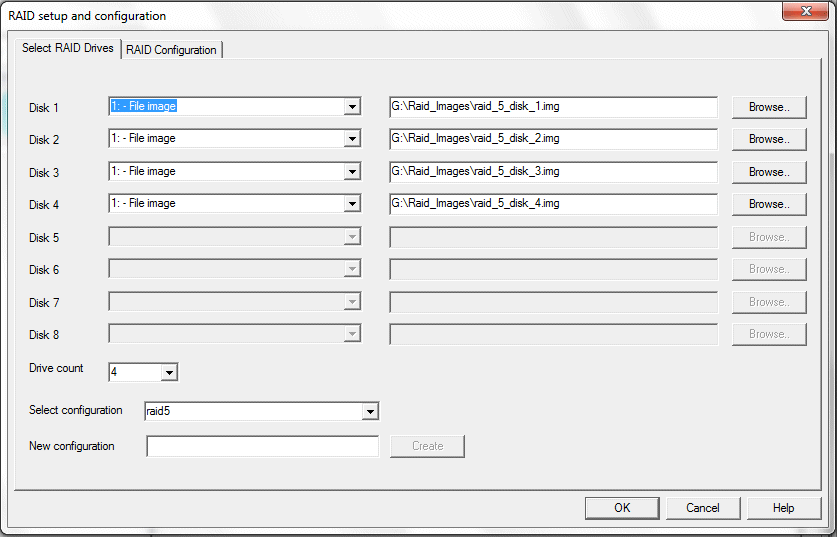

The example above is for 4 disk images.

It is not essential to select the drives in the correct order as the analysis will determine this.  However, if the order is known, it makes manual analysis rather easier

The RAID type is selected on this screen, and then the relevant configuration screen can be accessed to set up details of stripes etc.
